Measuring the length, width, and height of a box is a critical step in custom packaging. Whether it's packaging boxes or bags, the correct dimensions can reduce internal space, minimize transportation damage, optimize material usage and production efficiency, and ultimately save costs. Measuring box dimensions is relatively simple, but accurately measuring the dimensions of custom packaging boxes requires attention to detail. Even minor dimensional deviations can affect fit, leading to increased storage and logistics costs. Therefore, mastering the correct measurement methods is crucial.
To help you achieve this, we have developed a clear step-by-step guide for accurately measuring box dimensions, calculating volume, and noting important considerations to ensure product safety and cost savings.
Basic concepts of packaging box dimensions
The first step in creating the perfect packaging is to clarify its three basic dimensions, typically expressed as “length × width × height (L×W×H)” in inches or centimeters. In some cases, “H (height)” is replaced by “D (depth),” which is a personalized choice made by sellers to fit the shape of the product. In fact, both refer to the vertical dimension.
Length (L) and width (W) describe the surface area, with the longer side being the length and the shorter side being the width; Height (or depth) is the vertical measurement that can be determined by opening the lid - the distance from the top lid to the bottom of the box is the height.
Although different companies may alternate between using depth and height. the industry standard sequence for recording or reading measurements remains consistent: Length x Width x Depth (L x W x D) or Length x Width x Height (L x W x H).

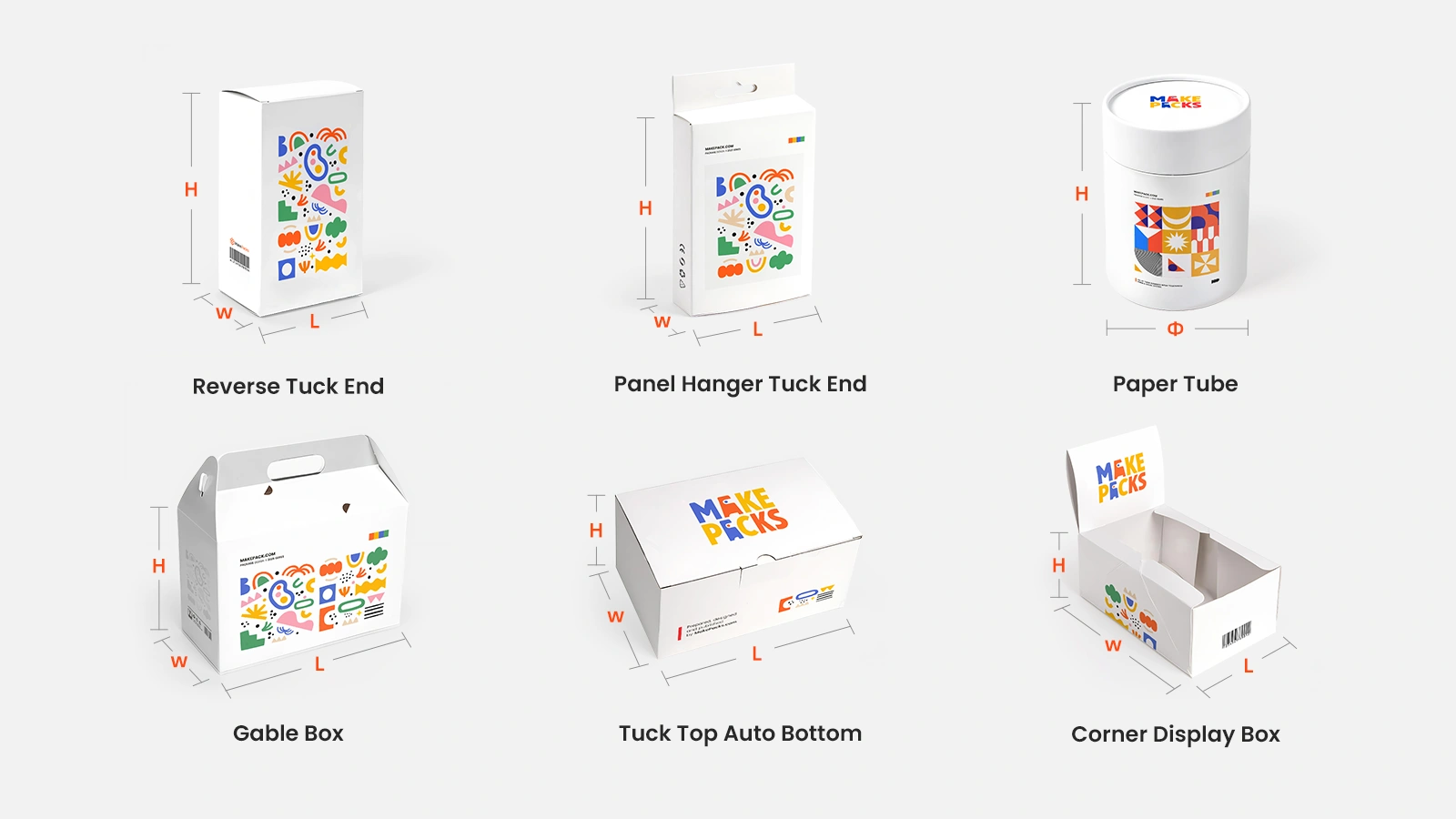

Regardless of the packaging chosen, the exact packaging dimensions must be known before production. Here are examples of different packaging box dimensions, as well as their marked positions for length, width, and depth.
Note:
1. When measuring, be sure to start from the outer edge of the box, not the inner edge.
2. Logistics companies usually calculate shipping costs based on external dimensions, while internal dimensions determine how many items can be loaded.

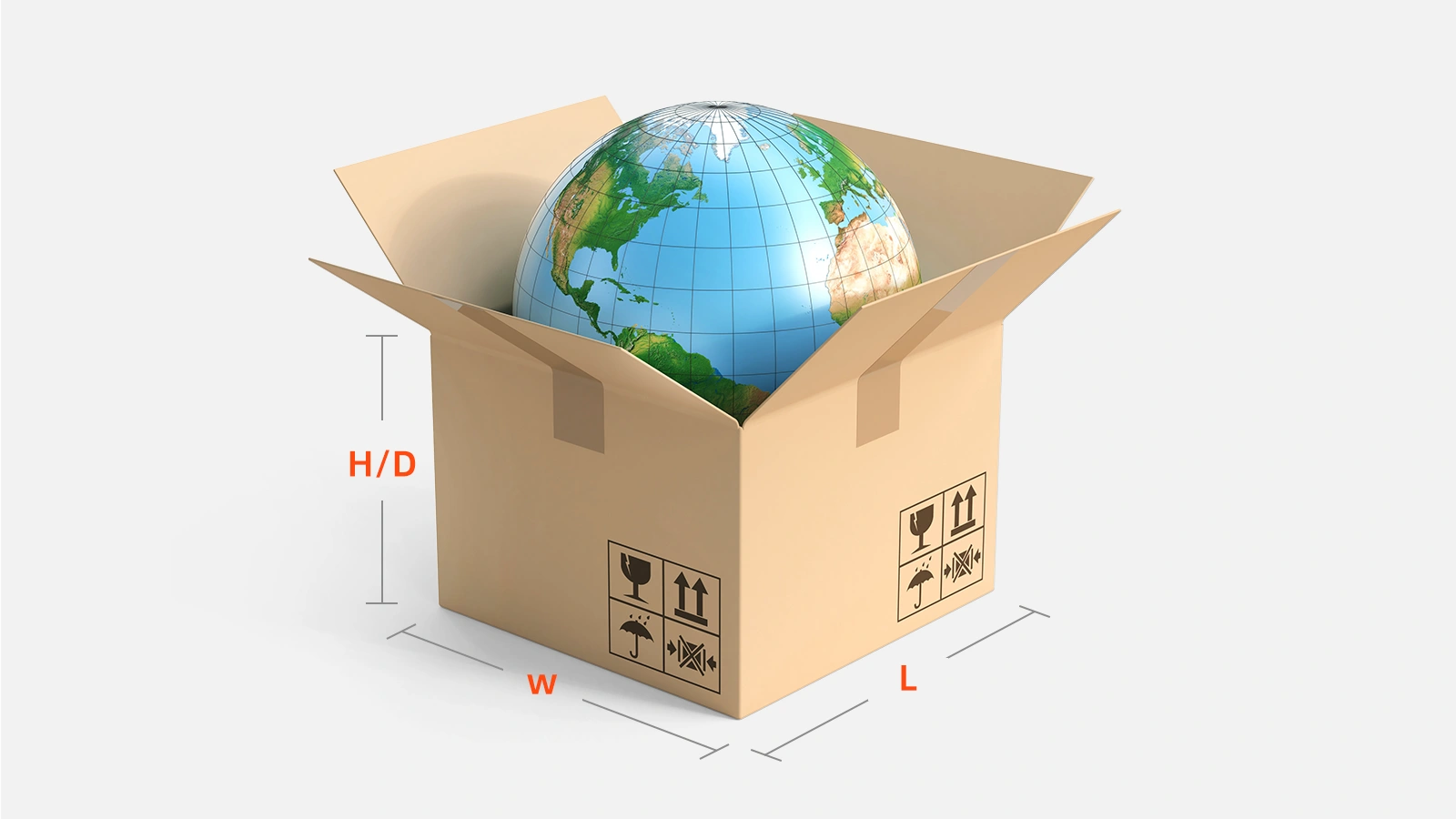

How to measure the external dimensions of a box
According to standard packaging specifications, the order of cardboard box dimensions should be “length-width-height.” If you see three numbers in the product size or size column, the first number represents the length, the second number represents the width, and the last number represents the height.
First, prepare the necessary measuring tools: a caliper (for measuring thickness), a ruler (for measuring length, width, and height), or a tape measure (for measuring circumference).
Measurement steps:
- Step 1
Check the orientation of your box. If your box has a lid, the side with the lid is the top. The height is the distance from the top lid to the bottom of the box.
- Step 2
Now, only the length and width dimensions are left. Measure the longest side to get the length, and measure the side adjacent to the length to get the width.
Tips:
1. If the box is slightly deformed, take the maximum value when measuring
2. For irregularly shaped boxes (such as boxes with handles), measure the most protruding part.
Calculate the volume of the box

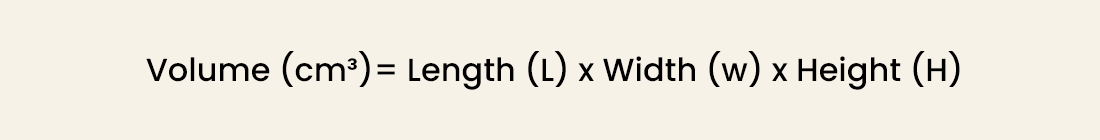

After obtaining the length, width, and height dimensions of the packaging box, the next step is to calculate the volume. This is of great significance for determining product placement methods, optimizing material usage, calculating transportation and warehousing costs, and fixing products. The calculation method is very simple: multiply the three dimensions (in centimeters) to obtain the volume in cubic centimeters.
It should be noted that when using the above formula to calculate the volume of a box, it is technically optional to know the dimensions corresponding to each measurement. However, we strongly recommend that you understand this information to effectively avoid confusion and errors in subsequent work.
If you find manual calculations cumbersome, you can use this convenient online calculator to quickly obtain accurate volume measurements.

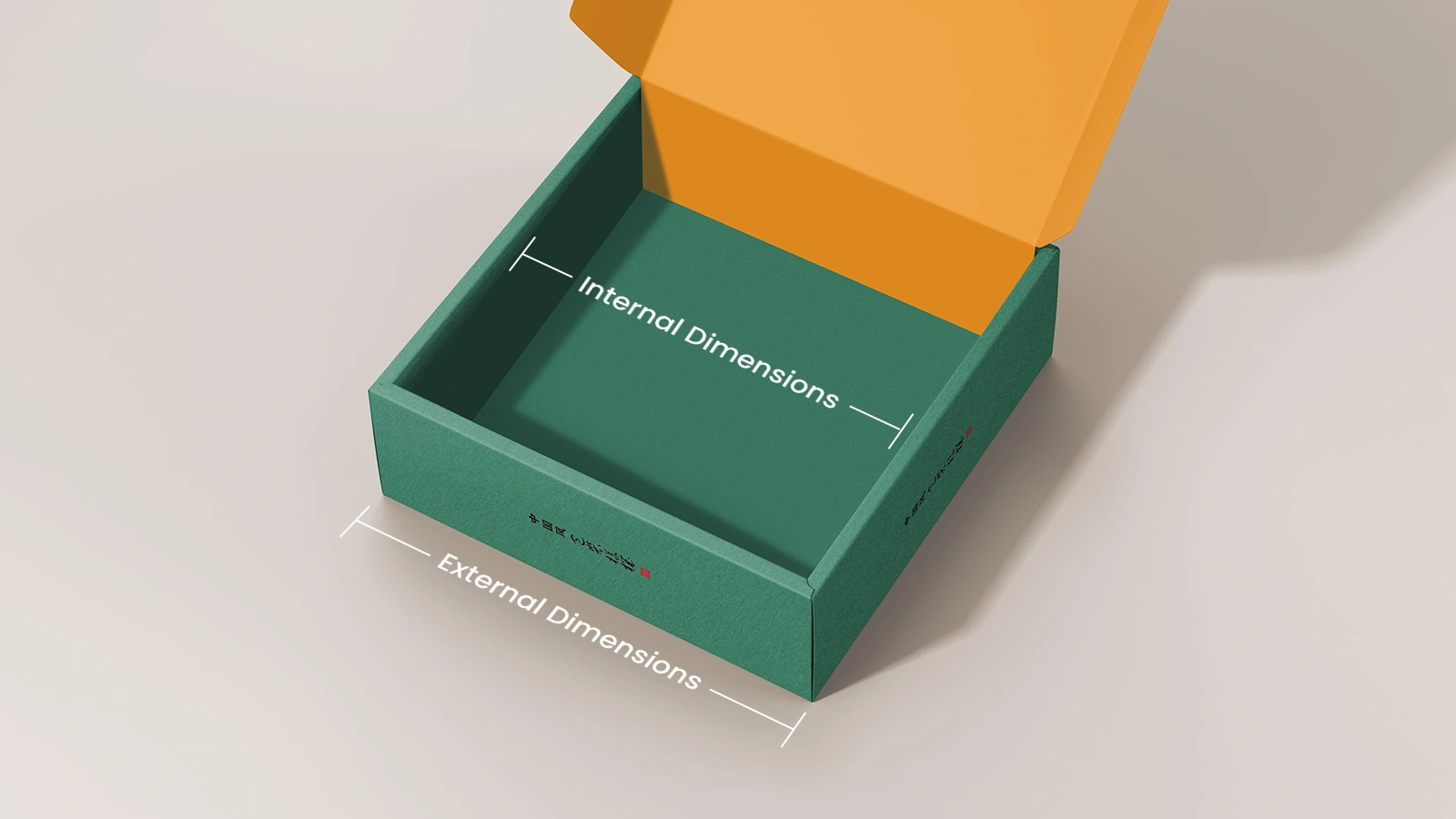

Internal dimensions vs External dimensions
Although we have demonstrated how to easily find the dimensions of a package, measure its exact length, width, and depth, and calculate its volume, there is one crucial detail that is often overlooked in packaging measurements: industry standards use internal dimensions rather than external dimensions. This distinction directly affects the compatibility between the product and its packaging.
For custom packaging projects, internal dimensions are more critical — they provide more accurate reference values for manufacturers and product compatibility. Although external dimensions may seem more intuitive and convenient to measure, internal dimensions are the key factor in ensuring a perfect match between packaging and product.
Measuring the internal dimensions determines whether your items can be safely placed inside the packaging box. Leaving the minimum amount of space inside the packaging ensures the safety of the product during transportation and handling. If relying solely on external dimensions, it may result in packaging and product mismatch due to the lack of consideration for box thickness (especially corrugated cardboard boxes, whose corrugated inner layer structure makes the external dimensions larger than the actual usable space).
Therefore, using internal dimensions as the standard ensures your product receives the most suitable protection! Please be sure to measure the internal dimensions!
How to measure internal dimensions:
1. Use a ruler to measure from one side of the inner wall of the box to the other side (length, width, height).
2. If the box has padding or thickened material, reduce the thickness of these parts.
Measurement Avoidance Guide: Mistakes You May Be Making
Error 1: Only measuring the inside or only measuring the outside.
Solution: Clarify the purpose—calculate the outside for transportation and the inside for loading.
Error 2: Ignoring bulges or dents in the box.
Solution: Record the maximum dimensions when there are slight bulges.
Error 3: Confusion of units (such as mixing inches and centimeters).
Solution： Unify the unit and indicate it in the quotation.
Summary
Now that you know how to find the length, width, and depth (height) of a box, how to measure its dimensions, calculate its volume, and better understand the importance of internal dimensions, you can apply these simple processes to any packaging project!
