Whether it's unforgettable luxury packaging or exquisitely elegant invitations and greeting cards, foil stamping instantly captures consumers' attention through the allure of metallic colors like gold and silver, creating powerful visual appeal.
This article explores how foil stamping can make your products stand out among competitors, transform ordinary packaging into memorable brand experiences, and ultimately achieve the dual goals of boosting sales and enhancing brand value.
What is Hot Foil Stamping?
1、Definition and Core Working Principle
- Definition: Also known as hot stamping, this precision decorative technique originated in the late 19th century. Utilizing the principle of thermal transfer, it precisely transfers the decorative layer from the hot foil onto the substrate surface to achieve dazzling visual effects.
- Working Principle: Pressure applied through a heated metal die plate (typically zinc, magnesium, or brass) separates the aluminum, pigment, or resin layer from the PET polyester film substrate within the foil, firmly transferring it onto the substrate surface. This technique bears multiple names due to its process characteristics: hot stamping, thermal foil stamping, and dry foil stamping (as it requires no ink throughout the process).
2、Precision Structure of Foil
The core of foil stamping lies in its unique multi-layer composite foil:
- Polyester carrier layer: Serves as the substrate for color transfer
- Release layer: Melts under heat to separate the pattern layer
- Image layer: Determines the final color effect
- Varnish layer: Provides protection and special texture
- Metal layer: Creates metallic luster
- Thermally activated adhesive: Ensures secure adhesion of the pattern
3、Application Value and Material Compatibility
Today, foil stamping has become a vital technique for enhancing a product's visual appeal and perceived value. It performs best on smooth, uniform surfaces, while results may be compromised on textured or lined substrates. Similar to embossing and spot UV processes, foil stamping can be widely applied to various paper materials, adding refined and distinctive decorative effects to design projects.
Step-by-Step Analysis of the Process Flow

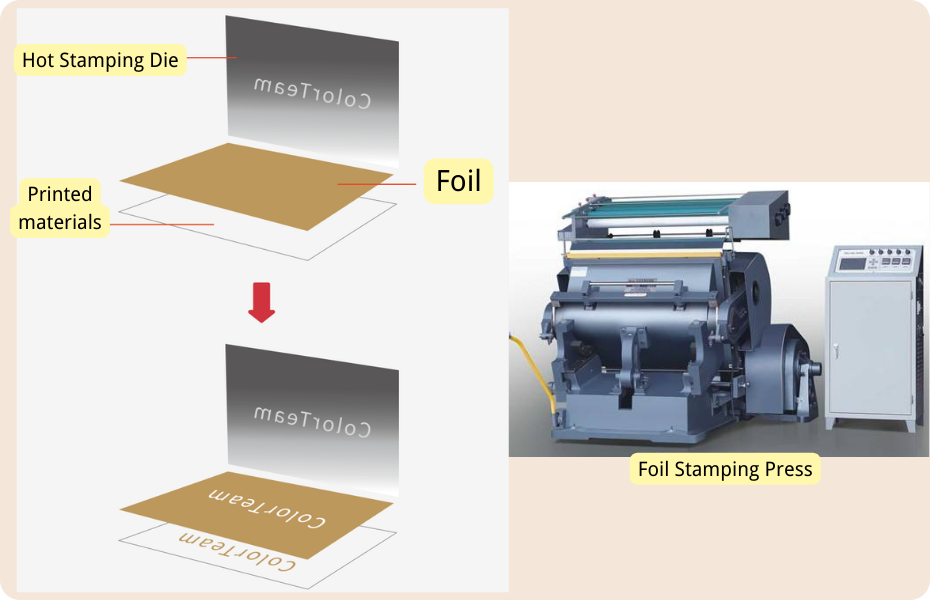

1、Three Core Elements
- Hot Stamping Die: Serving as the pattern carrier, the die is a raised metal plate created by engraving or etching based on the design artwork. Common materials include cost-effective zinc plates, quick-to-process magnesium plates, and high-precision copper plates. The raised sections directly determine the final pattern's form.

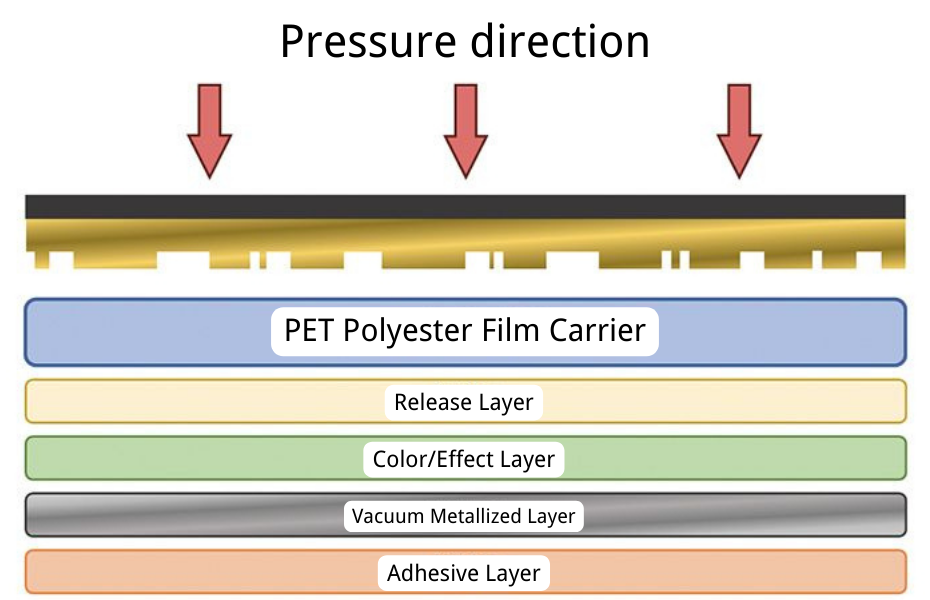

- Foil:
A multi-layered composite roll film that provides the color. Its structure, from top to bottom, includes:
PET Polyester Film Carrier: The base layer supporting all functional layers, providing structural support and transport during stamping before being peeled off.
Release Layer: Melts when heated, enabling the underlying layers to separate from the carrier.
Color/Effect Layer: Determines the visual outcome after stamping, such as metallic, pigmented, pearlescent, or holographic effects.
Vacuum Metallized Layer: (Not present in all foils) Used for metallic foils, providing a mirror-like metallic reflection through vacuum metallization technology.
Adhesive Layer: Activated by heat to generate tack, responsible for firmly adhering the pattern to the substrate.
- Foil Stamping Press: The execution device that secures the plate and substrate while precisely controlling critical parameters like temperature, pressure, and dwell time.
2、Step-by-Step Foil Stamping: From Die Heating to Foil Transfer
- Setup: Mount the metal die onto the foil stamping machine's heating plate and heat it to the preset temperature. Simultaneously, thread the foil through the printing zone below, while the substrate is precisely secured to the work platform.
- Stamping: The heated foil plate rapidly presses downward under intense pressure, firmly bonding the foil to the substrate surface. This action occurs instantaneously, ensuring even distribution of heat and pressure.
- Transfer: Heat and pressure activate the adhesive layer while breaking the release layer, causing the color layer to separate from the PET backing and permanently adhere to the substrate.
- Peeling: As the foil plate lifts, the PET backing is automatically pulled away, leaving the complete foil pattern behind. Excess foil is recycled.
3、Critical Technical Parameters: Temperature, Pressure, and Dwell Time
These three parameters form the core of the hot stamping process. They require fine-tuning based on the specific foil type, substrate material, and plate characteristics to achieve optimal results.
- Temperature: Excessive heat causes loss of gloss, hazy halos, or material burn-through. Insufficient heat prevents full activation of the adhesive layer, resulting in incomplete transfer, poor adhesion, and peeling.
- Pressure: Insufficient pressure blurs the foil pattern, while excessive pressure may damage the substrate (e.g., flattening paper fibers) or distort pattern edges.
- Dwell Time: This refers to the duration of contact between the hot foil and the substrate. Insufficient dwell time results in inadequate heat transfer and incomplete transfer; excessive dwell time may scorch the substrate or similarly degrade pattern quality.

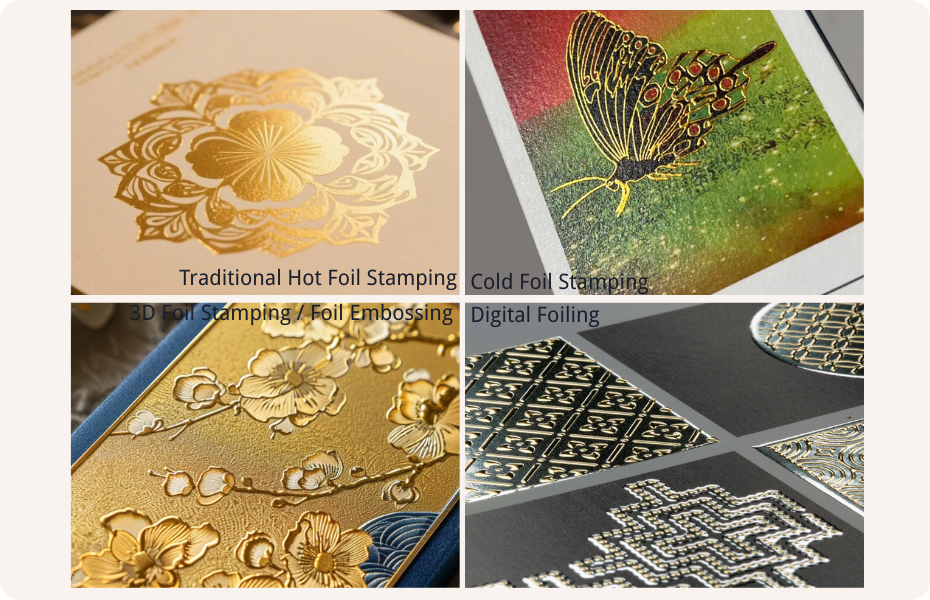

Common Types of Hot Foil Stamping
Hot foil stamping technology has continuously evolved, giving rise to diverse techniques to accommodate varying design requirements and production conditions. Based on operating principles and application outcomes, it can be primarily categorized as follows:
1、Traditional Hot Foil Stamping
This represents the most classic and widely applied hot foil stamping process.
- Working Principle: Directly uses a heated metal stamping plate to transfer foil onto the substrate through heat and pressure.
- Advantages: Produces solid, highly metallic effects with excellent durability and abrasion resistance; achieves good results on diverse materials like paper, plastic, leather, and fabric.
- Disadvantages: Higher plate production costs, relatively slower production efficiency, and unsuitable for heat-sensitive materials.
2、Cold Foil Stamping
A modern technique utilizing chemical adhesives instead of heat for transfer.
- Working Principle: A specialized UV-curable adhesive is precisely applied to the substrate via conventional printing plates (e.g., flexographic plates). Cold foil is immediately pressed onto the adhesive layer, which is then cured under UV lamps to bond the foil. Excess foil is subsequently peeled away.
- Advantages: Lower cost, eliminates the need for metal hot foil plates and heating equipment. Can be integrated inline with offset, flexo, or digital printing units, significantly boosting efficiency for large-scale production. Suitable for heat-sensitive substrates like PE film and pressure-sensitive labels.
- Disadvantages: Metallic luster and adhesion typically fall short of hot foil stamping. The finished product appears flat, lacking the embossed texture or raised effect achieved with hot foil.

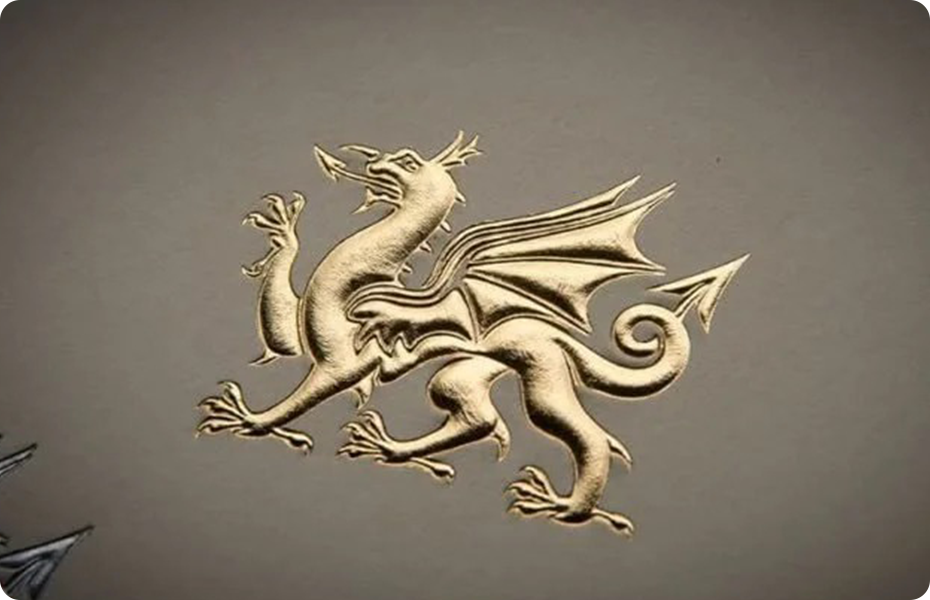

3、3D Foil Stamping / Foil Embossing
A premium, single-pass technique seamlessly integrating foil stamping with embossing.
- Working Principle: Utilizes a matched pair of embossing dies. During a single press cycle, the heated male die simultaneously performs foil stamping and embossing, resulting in patterns that exhibit foil coloration alongside pronounced three-dimensional relief effects.
- Applications: Widely used in premium cosmetic packaging, hardcover book covers, luxury gift boxes, etc., delivering unparalleled visual and tactile impact while significantly elevating perceived product value.
4、Digital Foiling
A digital foil stamping technology eliminates traditional printing plates, effectively resolving cost challenges for small-batch production.
- Working Principle: First, a digital printing device (e.g., HP Indigo) prints the design onto the substrate using a special transparent digital foil adhesive. Then, a laminator applies heat and pressure to transfer the foil onto the adhesive areas.
- Advantages: No plate making required and virtually no minimum order quantity. Particularly suited for short-run, highly personalized jobs (e.g., custom invitations, personalized packaging samples).

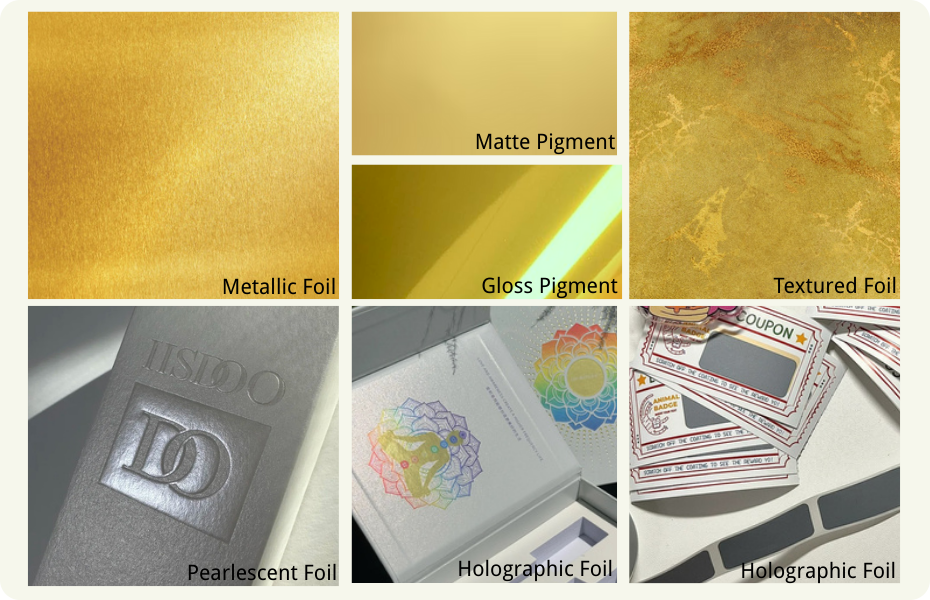

Exploring the Endless Possibilities of Foil Stamping
Foil stamping extends far beyond gold and silver hues—it's a world of materials brimming with creativity and potential. Selecting different foils is key to defining the final design's texture, mood, and perceived value. Below is a detailed introduction to mainstream foil stamping types, helping you find the perfect “outer layer” for your designs.
1、Metallic Foil
- Description: The most classic and widely used type. Produces intense metallic luster and reflective effects through processes like vacuum aluminum deposition.
- Common Colors: Gold, silver, rose gold, bronze, chrome, champagne gold, etc.
- Applications: The preferred choice for elevating the perceived value of jewelry boxes, high-end electronics, wine labels, gift packaging, and similar products.
2、Pigment Foil
- Description: Offers a wide range of pure colors without metallic reflectivity, but with varying surface gloss levels.
Gloss Pigment: Delivers vivid, highly reflective saturated hues like bright red, azure blue, and emerald green for striking visual impact.
Matte Pigment Foil: Features soft, subdued colors with zero reflectivity, delivering a discreet, elegant, and modern luxurious feel.
- Applications: Ideal for projects requiring specific brand colors or pursuing a modern minimalist aesthetic. Matte foil excels in cosmetics and art-related printed materials.
3、Textured Foil
- Description: Specific physical textures (e.g., leather grain, wood grain, marble, fabric weave, geometric patterns) are directly embossed onto the foil, transferring these textures onto substrates during hot stamping.
- Applications: Delivers a strong tactile experience and visual depth, imparting a three-dimensional texture to flat designs. Commonly used for premium brand book covers, gift boxes, and specialty packaging.
4、Pearlescent Foil
- Description: Mimics the warm, lustrous sheen of pearls, producing a soft, milky iridescence with subtle color shifts depending on viewing angle.
- Applications: Evokes romantic, elegant, and refined atmospheres, making it a popular choice for wedding invitations, greeting cards, cosmetic packaging, and women's brand products.
5、Holographic Foil
- Description: Features pre-fabricated laser holographic patterns that produce rainbow-like color shifts and 3D depth under varying light angles.
- Applications: Beyond creating futuristic, trendy designs, it serves as a critical anti-counterfeiting material for brand labels, certificates, premium tobacco/alcohol packaging, and electronics.
6、Scratch-Off Foil
- Description: A special removable coating. After foil stamping, it can be scratched off with a fingernail or coin to reveal pre-printed information underneath.
- Applications: Primarily used in interactive packaging such as lottery tickets, phone cards, recharge cards, promotional scratch cards, and game packaging. Effectively ensures information confidentiality and adds an element of fun.

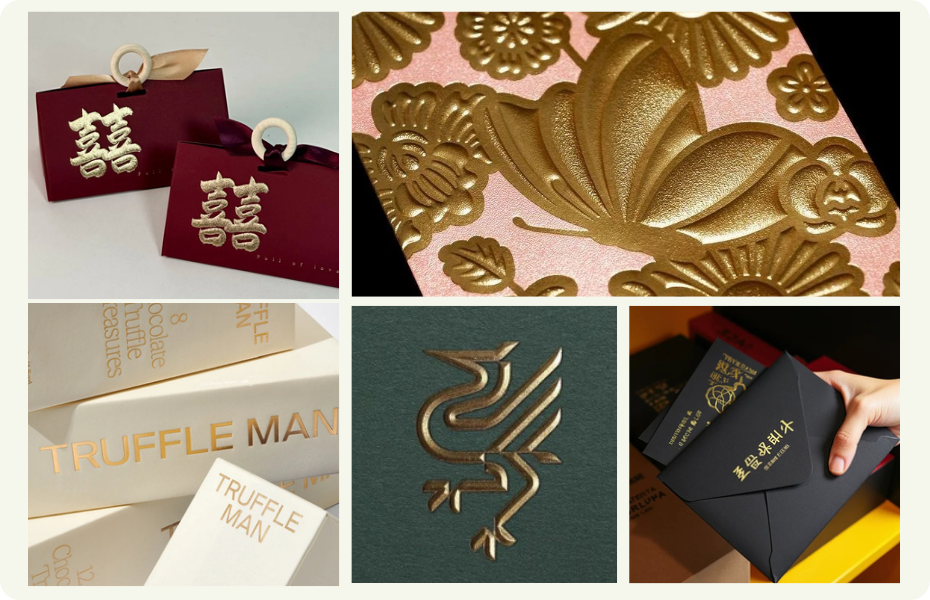

Why Choose Foil Stamping
Among numerous decorative techniques, foil stamping endures as a timeless choice for its unique and dazzling effects. Opting for foil stamping is not merely selecting a decorative method—it is embracing a commercial strategy that elevates product value and empowers brand growth.
1、Maximizing Product Value and Brand Image
Foil stamping instantly imbues products with a sense of luxury and premium quality. Through intense metallic sheen or distinctive color effects, it significantly elevates a product's visual appeal and perceived value. It makes brand logos and packaging stand out among competitors, serving as a silent “brand ambassador.” This effectively strengthens brand recognition and memorability while establishing a high-quality market image.
2、Exceptional Durability and Versatile Applicability
The foil layer exhibits outstanding abrasion resistance, resisting fading or peeling far beyond traditional metallic inks, ensuring enduring brand imagery. This process offers exceptional material adaptability, applicable across diverse substrates including paper, plastic, leather, wood, and textiles, providing consistent decorative solutions for cross-industry products.
3、Robust Anti-Counterfeiting Capabilities and Security
Specialized hot stamping techniques—such as holographic foils, microtext, or custom textures—create intricate effects that are extremely difficult to replicate. This provides reliable anti-counterfeiting protection for certificates, premium goods, and packaging, serving as a vital tool for safeguarding brand assets and combating counterfeits.
4、Boundless Design Creativity and Expressiveness
Foil stamping unlocks unprecedented creative possibilities far beyond traditional gold and silver finishes. Designers can utilize specialty materials like colored pigment foils, pearlescent foils, and textured foils to achieve rich visual effects ranging from high gloss to matte, and from metallic to pearlescent. This diversity ensures every brand can discover a unique decorative solution, maximizing design expressiveness.
5、Directly Driving Sales and Market Success
Foil stamping serves as an effective marketing tool. Its reflective properties attract consumer attention from a distance in retail environments, effectively guiding purchasing decisions. By elevating product aesthetics and perceived value, foil stamping directly supports brand premium pricing strategies, increases product profit margins, and ultimately maximizes return on investment.
Conclusion
Foil stamping is far more than a simple decorative technique; it is a powerful tool that deeply integrates aesthetic value with commercial strategy. Through its highly recognizable visual language, it builds a luxurious, unique, and unforgettable market image for brands, becoming a key weapon to stand out in fierce competition.
