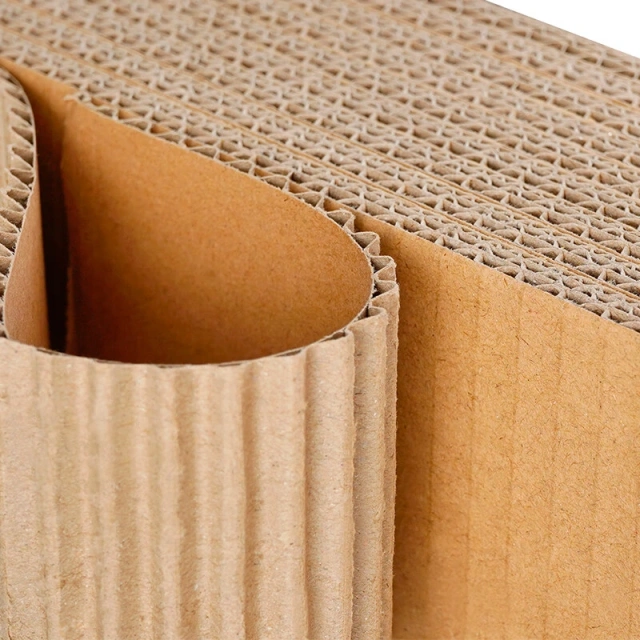

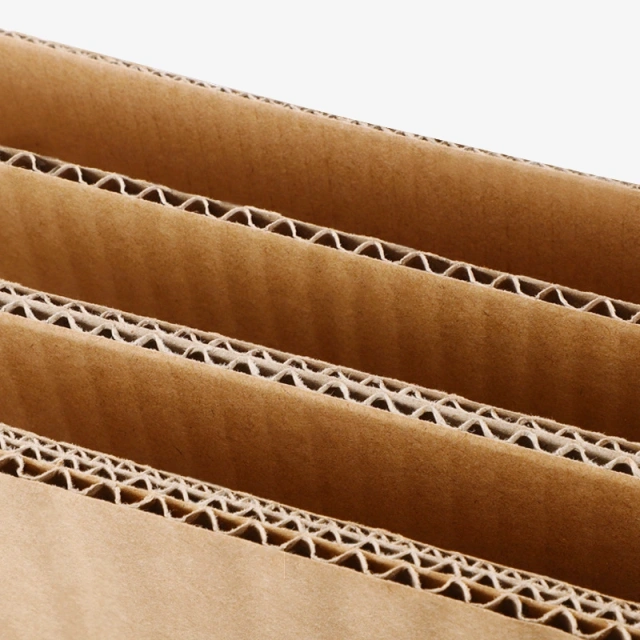

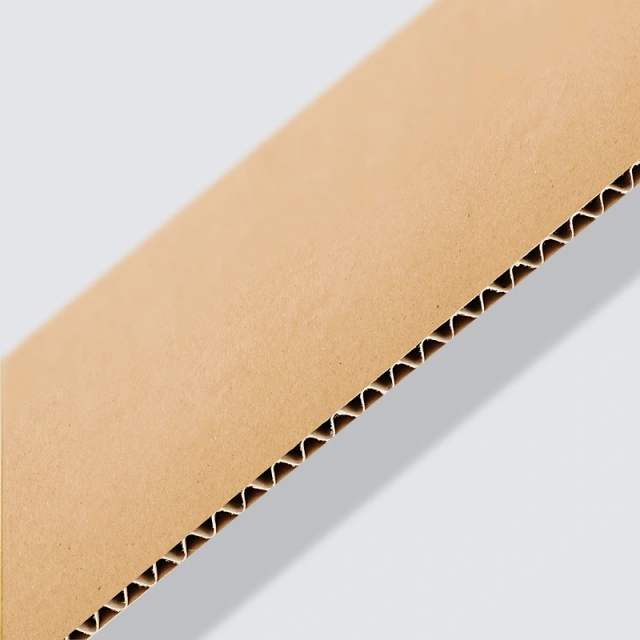

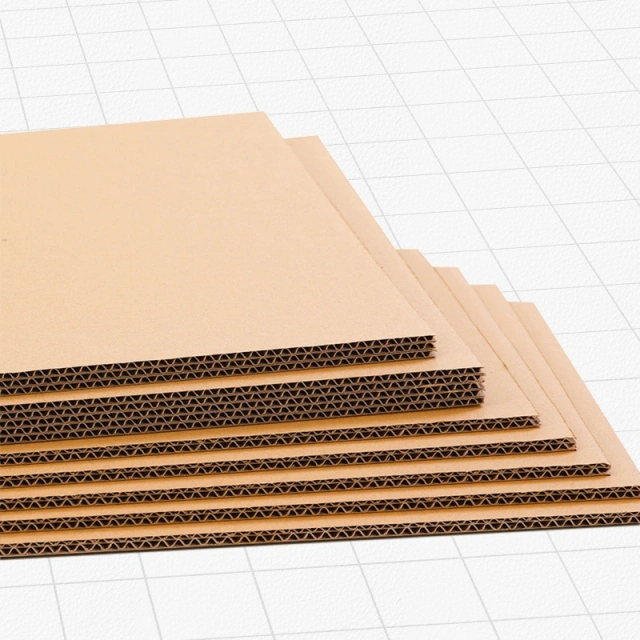

Natural kraft board is made up of 80% virgin pulp fibre, making it up to 100% recyclable and biodegradable. This material is brown in color and offers optimal durability as well as tear and dust resistance, making it ideal for packaging products for shipping. Natural Kraft boards are in fact the industry standard for producing corrugated packaging, making this material readily available and fairly cost effective to produce. However, the brown color of this material may alter printing output to appear more muted or faded. Although, bleached white or Kemi white liner boards tend to be a little more costly, if your brand requires vibrant designs, considering the extra cost may be worth while.
| Min. Burst Strength (lbs/sq in) |
Min. Edge Crust Test (lbs/in) |
Min. Combined Weight of Facings (lbs/m sq ft) |
Max Weight of Box and Contents (lbs) |
Max Outside Dimensions (L + W + D in) |
|---|---|---|---|---|
| 125 lbs/sq in | 23 lbs/in | 52 lbs/m sq ft | 20 lbs | 40 in |
| 150 lbs/sq in | 26 lbs/in | 66 lbs/m sq ft | 35 lbs | 50 in |
| 175 lbs/sq in | 29 lbs/in | 75 lbs/m sq ft | 50 lbs | 60 in |
| 200 lbs/sq in | 32 lbs/in | 84 lbs/m sq ft | 65 lbs | 75 in |
| 250 lbs/sq in | 40 lbs/in | 111 lbs/m sq ft | 80 lbs | 85 in |
| 275 lbs/sq in | 44 lbs/in | 138 lbs/m sq ft | 95 lbs | 95 in |
| 350 lbs/sq in | 55 lbs/in | 180 lbs/m sq ft | 120 lbs | 105 in |
| Min. Burst Strength (lbs/sq in) |
Min. Edge Crust Test (lbs/in) |
Min. Combined Weight of Facings (lbs/m sq ft) |
Max Weight of Box and Contents (lbs) |
Max Outside Dimensions (L + W + D in) |
|---|---|---|---|---|
| 200 lbs/sq in | 42 lbs/in | 92 lbs/m sq ft | 80 lbs | 85 in |
| 275 lbs/sq in | 48 lbs/in | 110 lbs/m sq ft | 100 lbs | 95 in |
| 350 lbs/sq in | 51 lbs/in | 126 lbs/m sq ft | 120 lbs | 105 in |
| 400 lbs/sq in | 61 lbs/in | 180 lbs/m sq ft | 140 lbs | 110 in |
| 500 lbs/sq in | 71 lbs/in | 222 lbs/m sq ft | 160 lbs | 115 in |
| 600 lbs/sq in | 82 lbs/in | 270 lbs/m sq ft | 180 lbs | 120 in |
| Min. Burst Strength (lbs/sq in) |
Min. Edge Crust Test (lbs/in) |
Min. Combined Weight of Facings (lbs/m sq ft) |
Max Weight of Box and Contents (lbs) |
Max Outside Dimensions (L + W + D in) |
|---|---|---|---|---|
| 700 lbs/sq in | 67 lbs/in | 168 lbs/m sq ft | 240 lbs | 111 in |
| 900 lbs/sq in | 80 lbs/in | 222 lbs/m sq ft | 260 lbs | 115 in |
| 1100 lbs/sq in | 90 lbs/in | 264 lbs/m sq ft | 280 lbs | 120 in |
| 1300 lbs/sq in | 112 lbs/in | 360 lbs/m sq ft | 300 lbs | 125 in |
| Min. Burst Strength (lbs/sq in) |
Min. Edge Crust Test (lbs/in) |
Min. Combined Weight of Facings (lbs/m sq ft) |
Max Weight of Box and Contents (lbs) |
Max Outside Dimensions (L + W + D in) |
|---|---|---|---|---|
| 150 lbs/sq in | 26 lbs/in | 66 lbs/m sq ft | 35 lbs | 50 in |
| 200 lbs/sq in | 32 lbs/in | 84 lbs/m sq ft | 65 lbs | 75 in |
Force is applied perpendicular to the edge of the corrugated board until it buckles. The results provide accurate representation of the material's strength, durability and stack resistance for heavier loads. The resulting value is shown in pounds per linear inch of load-bearing edge and is reported in ECT ratings.
Note: 32 ECT is the most commonly used for corrugated material.
The burst test, otherwise known as the Mullen Test, challenges the durability of the corrugated fiberboard’s surface. The burst test determines the amount of force required to puncture the liner board. The resulting value is given in pounds per square inch.
Note: 200# means 200 pounds per square inch of force applied to the face of the liner board.
